Shakerag Water Reclamation Facility

Clean water to return to the Chattahoochee River.

Treatment Plant
Location
Suwanee, GA
Delivery Method
Design-Bid-Build
Client
Forsyth County, GA 2017
Year Complete
2017
Region
Southeast

Project Overview

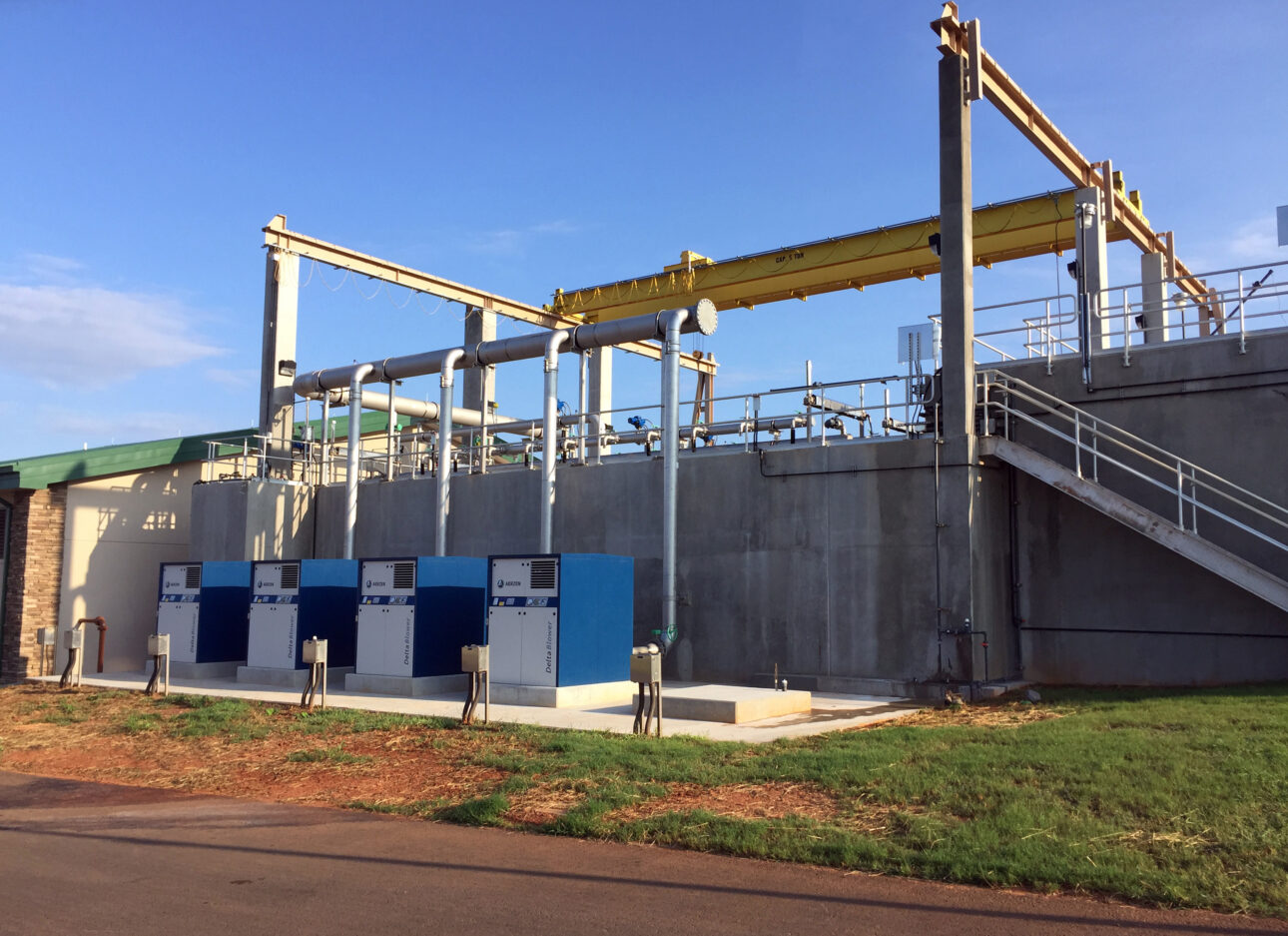

This new $29.8 million, 1.25-mgd membrane filtration facility was the first of the County’s plants to return water to the Chattahoochee River. Work included an equalization tank for flow management and plant safety and a biological nutrient removal (BNR) process utilizing organisms to clean water and remove phosphorus. This project also added UV disinfection and Ovivo/Kubota SP400 flat sheet membranes utilizing an average 0.2 micron pore opening.

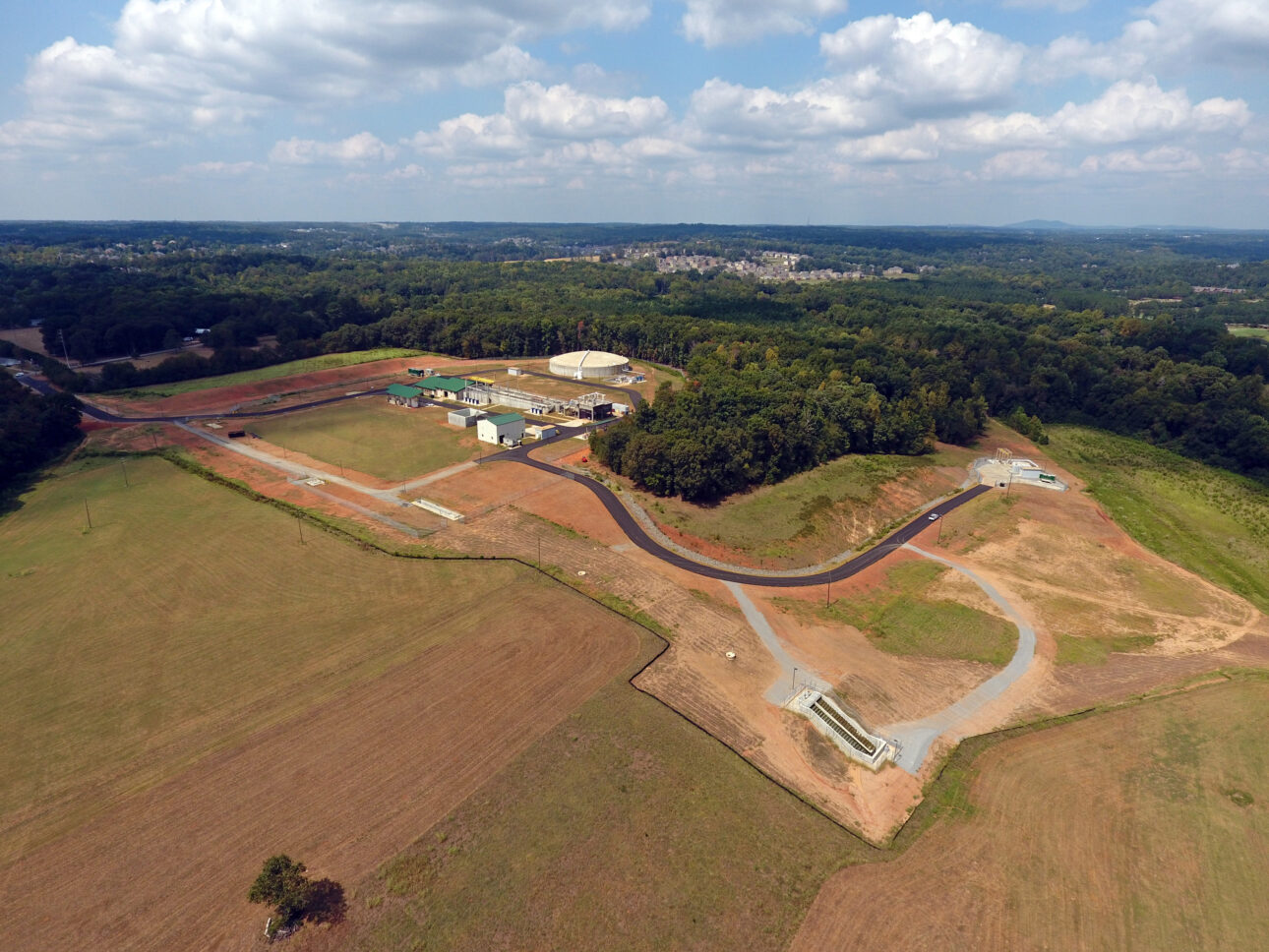

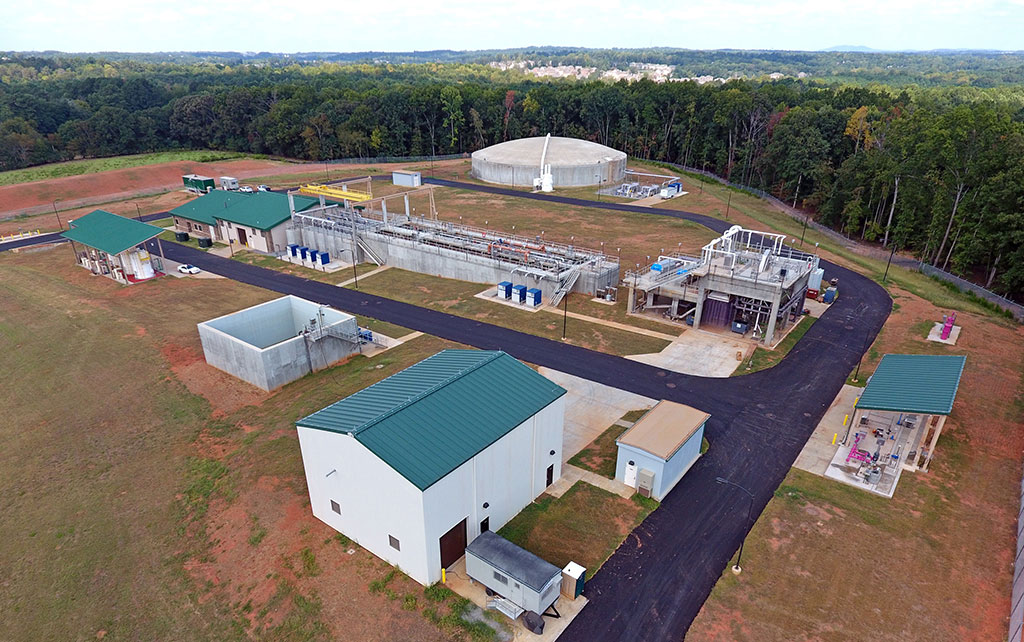

Significant planning went into the layout of the new facility to maximize the efficiency and ease of future expansions by simply adding equipment to existing structures, allowing for common wall construction and minimizing new structure construction needs. The current plant layout will accommodate an incremental expansion up to a 10-mgd capacity.

4M

Gallon Facility Equalization Tank

1.25

MGD Membrane Bioreactor Facility

70%

Contract Value Self-Performed by PC
